22LR Headspace gauge set

Position7 × Whidden Gunworks .22 LR Headspace Gauge Set – .039″ to .047″

Accurately measure the headspace of your .22 LR firearm with this nine-piece gauge set, spec’d by Position7 and manufactured by Whidden Gunworks.

Whidden normally offers two seven-piece ranges or a complete fourteen-piece set. We found the smaller option a little too limited and the complete set more than most rimfire shooters need, so we chose the useful middle ground: nine gauges covering .039″ to .047″ in precise .001″ increments.

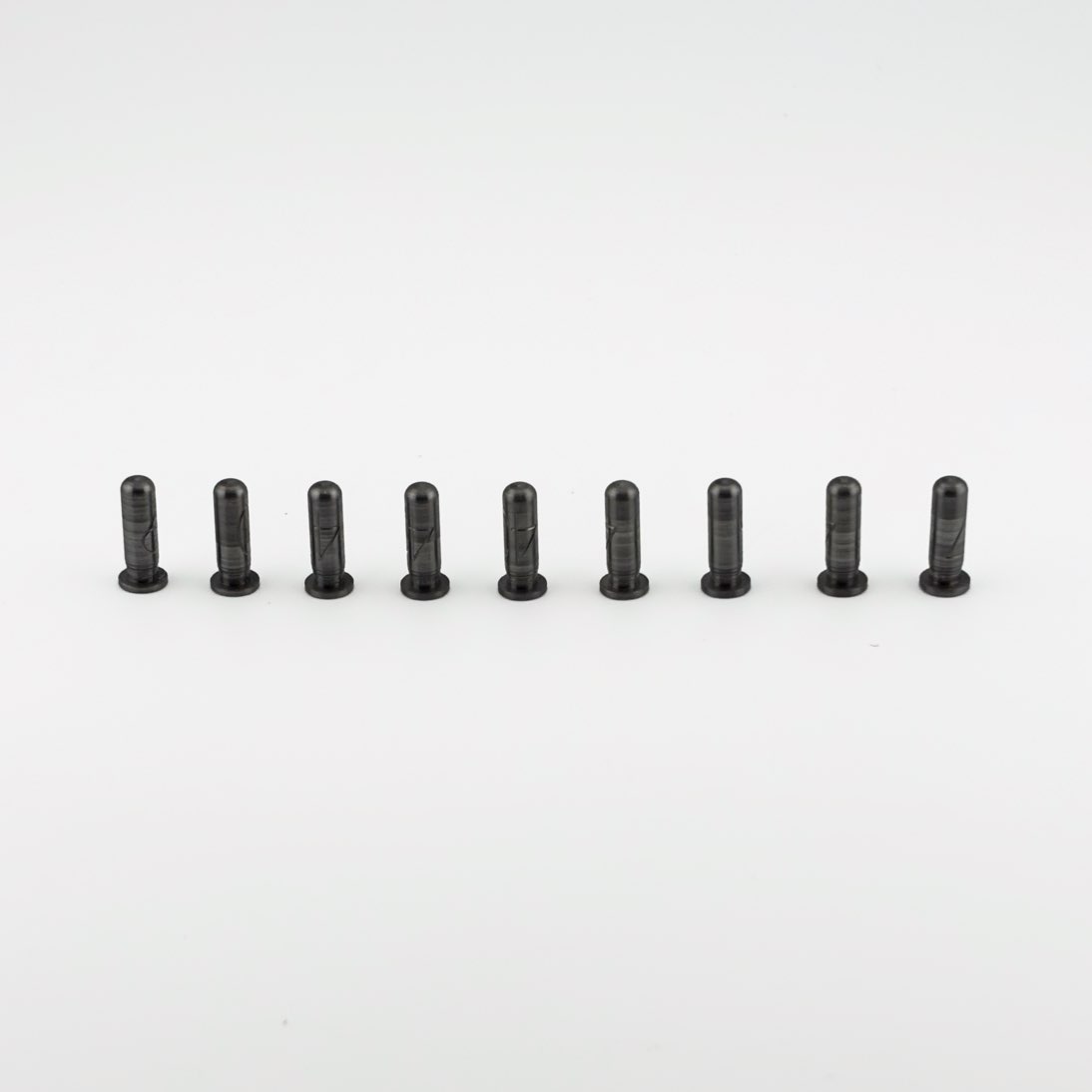

The set can be used to check an existing rifle, verify headspace when installing a prefit barrel, or select the appropriate bolt shim when tuning a rifle for your chosen ammunition. Each stainless-steel gauge is individually marked for quick identification.

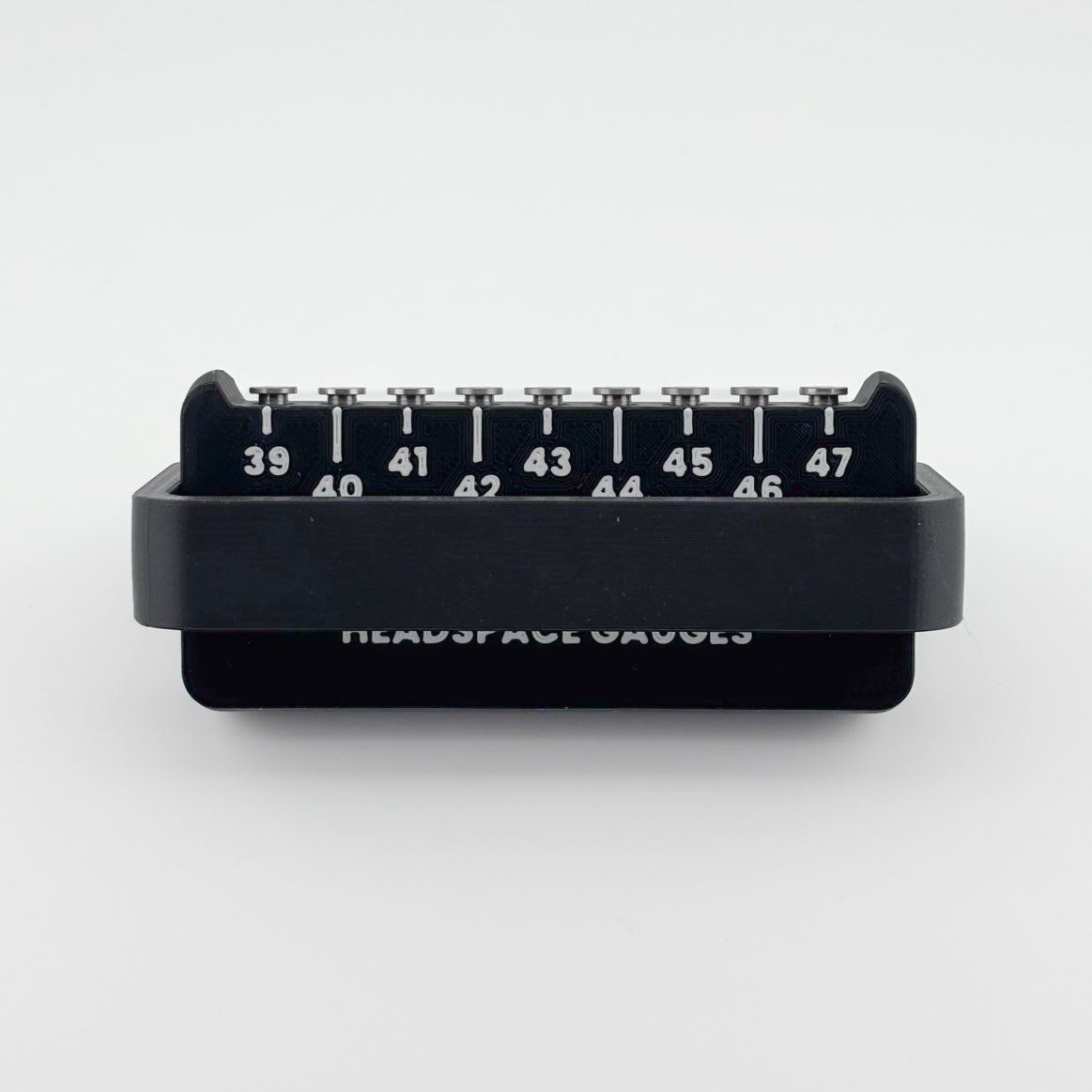

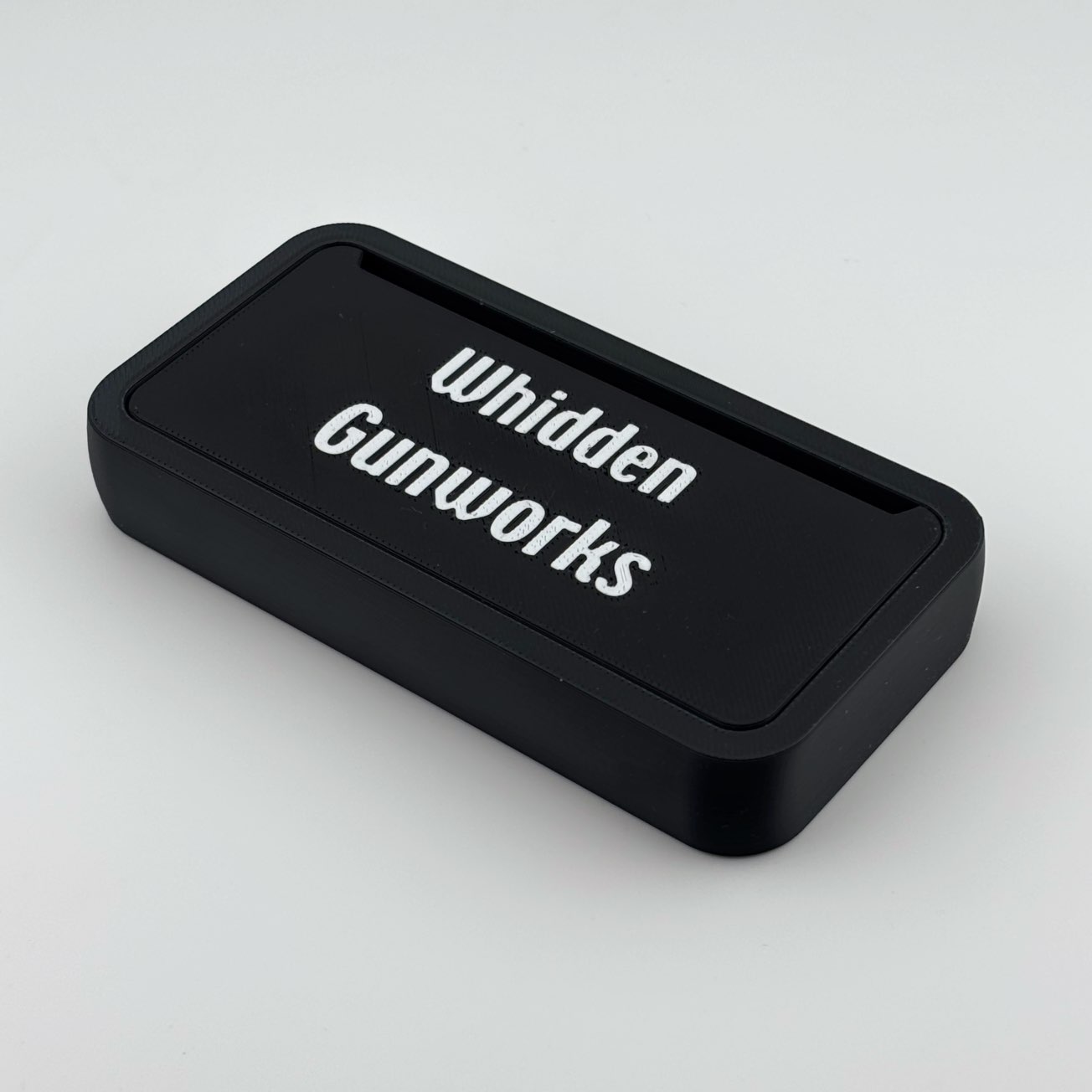

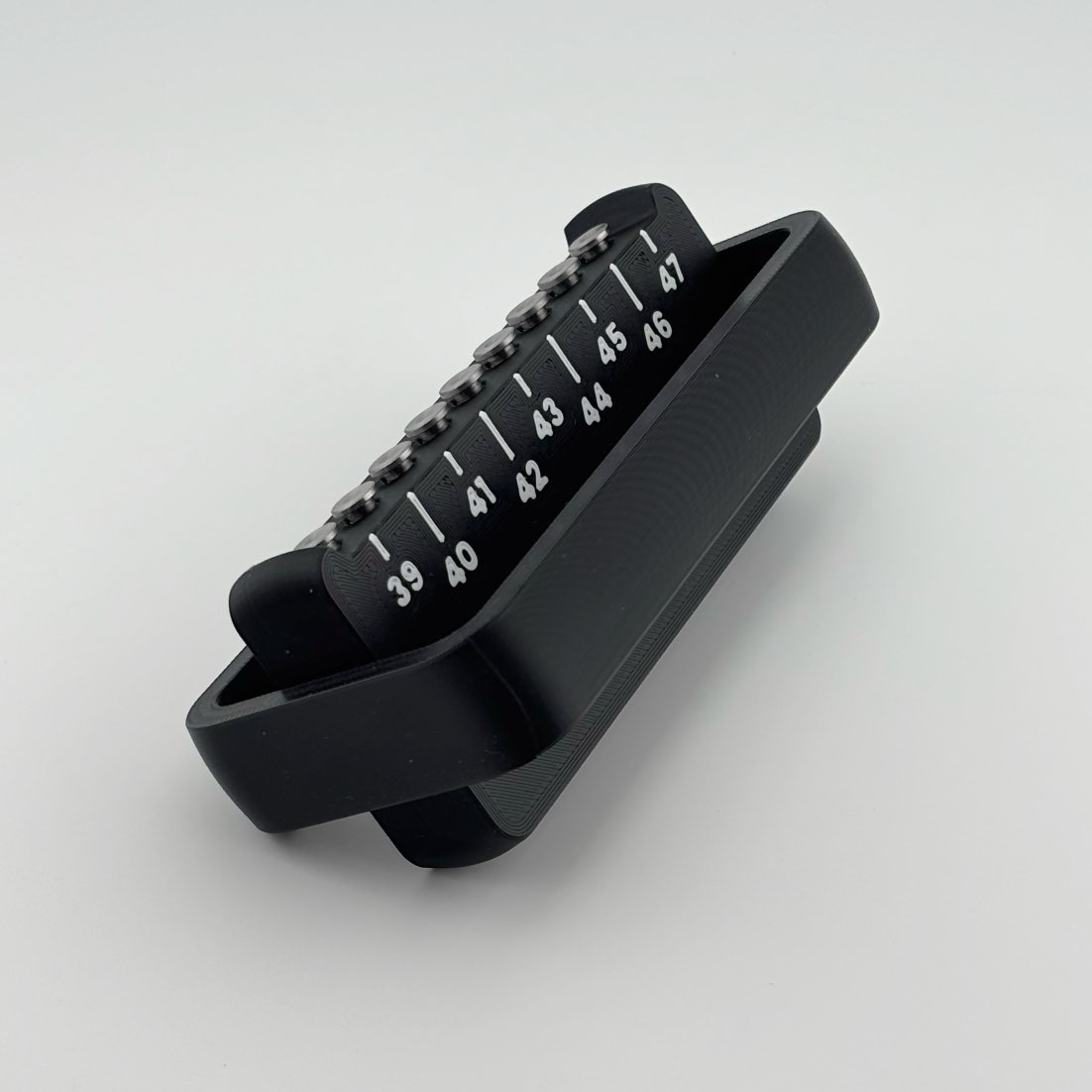

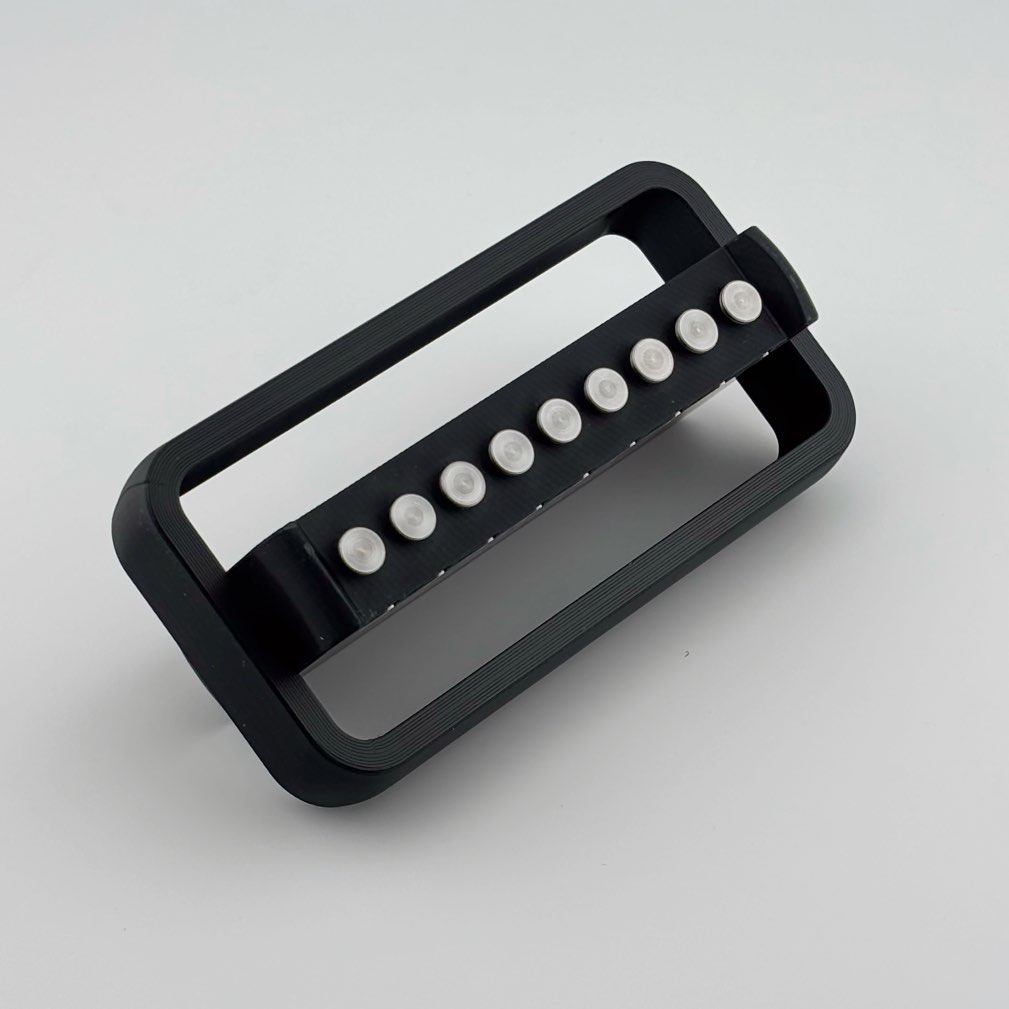

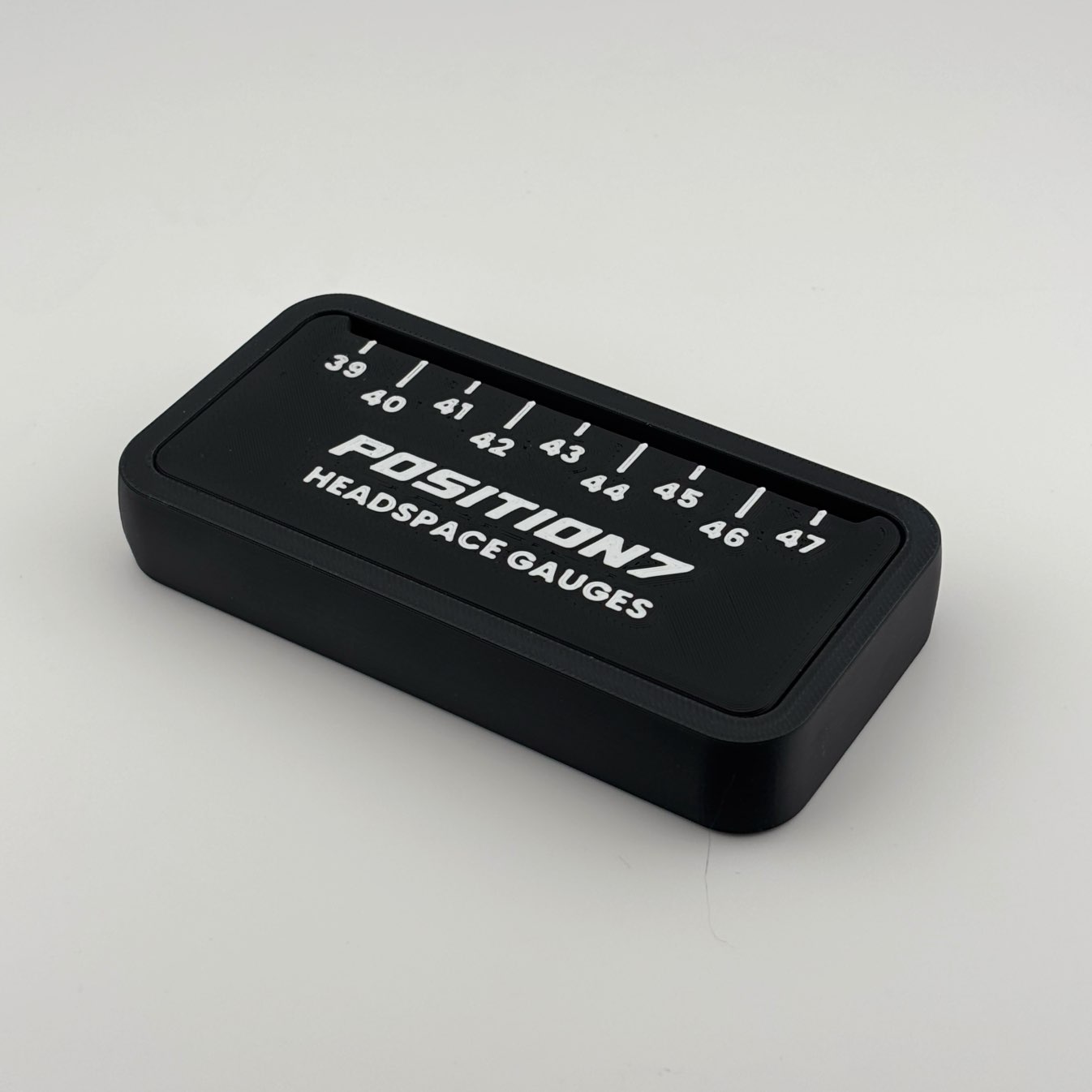

The included 3D-printed storage box keeps all nine gauges organised and protected. And just for fun, the storage box has an integrated kickstand.

Want to understand what you are measuring before getting started? Read our guide: CZ 457 .22 LR Headspace: What It Is, Why It Matters and How to Adjust It.

Included gauges

• .039″
• .040″
• .041″
• .042″
• .043″
• .044″
• .045″
• .046″
• .047″

Key features

• Nine-piece Position7-specified set
• Manufactured by Whidden Gunworks
• Covers .039″–.047″ in .001″ increments
• Individually marked stainless-steel gauges
• Suitable for checking rifles, fitting prefit barrels and selecting headspace shims
• Custom 3D-printed storage box included

Safety note: Always work with an unloaded firearm and follow the gauge and firearm manufacturers’ instructions. Never force the bolt closed on a gauge. If you are unsure how to measure or adjust headspace safely, consult a qualified gunsmith.
